CNSME

vertical froth pumps SF150/SV

Short Description:

Pump

Discharge

152mm

Suction

354mm





Impeller

Vanes

5

Vane ø

560mm

Type

open

Part No

Material

SAF6127

Metal

Frame (Rating - KW)

63mm

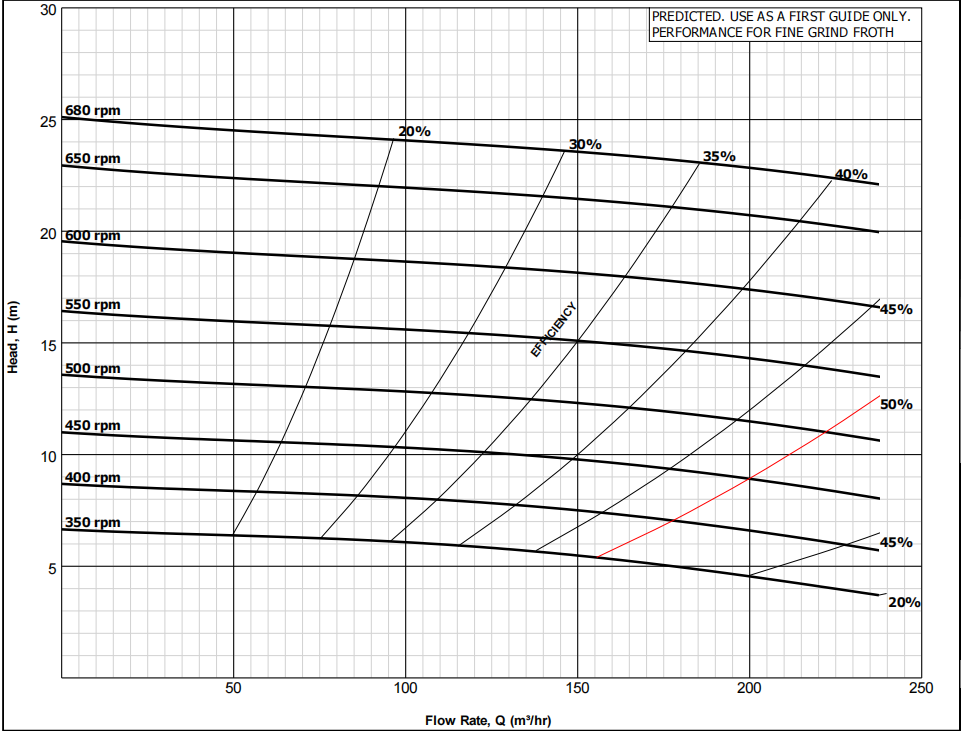

Curve

Revision

1

Revision Notes

VANE DIAMETER WAS 540

Reference

PREDICTED

Issued

Aug 98


Product Detail

Product Tags

CURVE SHOWS APPROXIMATE PERFORMANCE FOR CLEAR WATER (International Test Standard ISO9906:1999 - Grade 2 unless otherwise specified).   For media other than water, corrections must be made for density, viscosity and/or other effects of solids.   WEIR MINERALS reserves the right to change pump performance and/or delete impellers without notice.   Frame suitability must be checked for each duty and drive arrangement.   Not all frame alternatives are necessarily available from each manufacturing centre. 20230217094905.png
